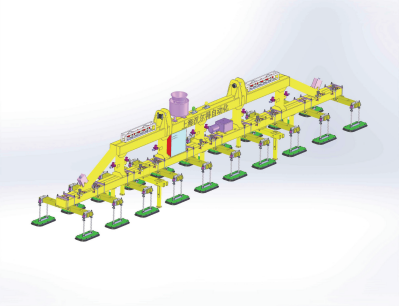

Vacuum huge Lifter Capacity 20ton for Metal Sheet

Short Description:

HL Huge lifter is designed to meet the needs of heavy lifting operations, and its high-end configuration features ensure efficient and safe handling of large and heavy materials.

Send email to us

Product Detail

Product Tags

Introduction

HL Huge lifter is designed to meet the needs of heavy lifting operations, and its high-end configuration features ensure efficient and safe handling of large and heavy materials.HEROLIFT Huge vacuum lifters are designed to increase production efficiency, improve safety and simplify material handling processes. With a solid structure, advanced functions and reliable performance, our vacuum lifters are the ideal solution for lifting and transporting large materials easily and accurately.Apply the SS sheet for horizontal handling various sheet length, To processing the sheet metal in the workshop. we all can customized.

This vacuum lifter uses a DC or AC power system. The AC equipment can provide a suitable transformer according to the voltage requirements of your country, allowing you to install and operate without worries.The equipment can also choose a long-life battery configuration to ensure sufficient power and no frequent charging.

Huge vacuum lifters are using the original imported high-flow vacuum pump and large-capacity accumulator, with excellent suction and stability.The vacuum alarm provides additional safety, alerting the operator to potential problems during lifting operations and lifting safely.

Almost everything can be lifted

With custom-made tools we can solve your specific needs. Please contact us for more information.

Characteristic

1, Max.SWL40T

Adjustable suction cup

Remote control

Safety tank&pressure switch warning

CE certification EN13155:2003

China Explosion-proof Standard GB3836-2010

Designed according to German UVV18 standard

2, Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.

3,A single person can thus quickly move up to 4 tonnes, multiplying productivity by a factor of ten.

4, It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.

5, It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.

Performance Index

Serial No.	HL20000-20-T	Max capacity	20000kg
Overall Dimension	12000X1200mmX1200mm	Power input	According to local needs
Control mode	Manual or Electrical	Suction and discharge time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree（about0.85Kgf）	Alarm pressure	60%vacuum degree（about0.6Kgf）
Safety factor	S>2.0;Horizontal absorption	Dead weight of equipment	6400kg（approximate）
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Feathers

Vacuum suction cup

•Easy replace •Rotate pad head

•Suit various working conditions

•Protect workpiece surface

Vacuum pump

•high flow with less energy

•lowest vibration&noise level

•Multi functional, time and labor-saving

•environmentally friendly energy-saving

Aviation plug

•Waterproof and dustproof

•Anti corrosion and anti-aging

•High temperature flame retardant

•Impact resistant shell

Quality Raw Materials

•Excellent workmanship

•High strength long life

•High quality

•Corrosion preventive

Specification

SWL/KG	Type	Cup Diam.mm	Cups	L×W×H mm	Own Weight kg
2500	HL2500-10	Φ360	10	4000×1000×1200	500
3000	HL3000-3	450x850	3	4000×1000×1200	600
5000	HL5000-5	450x850	5	4500×1000×1200	1200
8000	HL8000-8	450x850	8	9000×1200×1200	1800
10000	HL10000-10	450x850	10	12000×1200×1200	2800
15000	HL15000-16	450x850	16	12000×1200×1200	4500
20000	HL20000-20	450x850	20	12000×1200×1200	6400
26000	HL26000-27	450x850	27	18000×2000×2500	7800
			Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
			For optionalDC OR AC Motor drive as your requirements

Detail display

Function

Safety tank integrated；

Suitable for occasions with large size changes

Imported oil-free vacuum pump and valve

Efficient, safe, fast and labor-saving

Pressure detection ensure safety

Design conforms to CE standard

Application

Steel Plate Handling

Plate Up/Loading

Aluminum Handling

Alloy Plate Handling
