Vacuum board lifter with adjustable suction cup for metal sheet

Short Description:

The BL Series steel plate lifts are a popular choice among professionals in a variety of industries including construction, manufacturing and transportation. With its advanced lifting mechanism and sturdy structure, this hoist is capable of handling a variety of materials with ease. Say goodbye to back pain and fatigue from manual lifting and welcome a new era of effortless material handling.

One of the key features of our BL range of steel plate lifts is their versatility. Whether you need to lift sheets, aluminum, plastic, glass, slate, laminated chipboard or any other similar material, this lift can meet your needs. Its secure grip ensures safe and secure lifting, preventing any accidental slipping or material damage.

In addition to their versatility, the BL Series plate lifts are also very easy to operate. With its user-friendly controls and ergonomic design, it can be operated easily by anyone, regardless of experience or skill level. This means your team can start using the weight machine right away, without extensive training or complicated instructions.

Safety is always a top priority when it comes to material handling, and the BL Series steel plate lifts are no exception. It comes with multiple safety features including a double locking system and an overload protection mechanism. These ensure that your materials are lifted safely and that the hoist remains stable and reliable throughout the process.


Product Detail

Product Tags

The BL Series steel plate lifts are a popular choice among professionals in a variety of industries including construction, manufacturing and transportation. With its advanced lifting mechanism and sturdy structure, this hoist is capable of handling a variety of materials with ease. Say goodbye to back pain and fatigue from manual lifting and welcome a new era of effortless material handling.

 One of the key features of our BL range of steel plate lifts is their versatility. Whether you need to lift sheets, aluminum, plastic, glass, slate, laminated chipboard or any other similar material, this lift can meet your needs. Its secure grip ensures safe and secure lifting, preventing any accidental slipping or material damage.

 In addition to their versatility, the BL Series plate lifts are also very easy to operate. With its user-friendly controls and ergonomic design, it can be operated easily by anyone, regardless of experience or skill level. This means your team can start using the weight machine right away, without extensive training or complicated instructions.

 Safety is always a top priority when it comes to material handling, and the BL Series steel plate lifts are no exception. It comes with multiple safety features including a double locking system and an overload protection mechanism. These ensure that your materials are lifted safely and that the hoist remains stable and reliable throughout the process.

Almost everything can be lifted

With custom-made tools we can solve your specific needs. Please contact us for more information

Characteristic

1,  Max.SWL1500KG

Low pressure warning

Adjustable suction cup

Remote control

CE certification EN13155:2003

China Explosion-proof Standard GB3836-2010

Designed according to German UVV18 standard

2, Large vacuum filter,  vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance,   adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.

3,A single person can thus quickly move up to 1 tonnes, multiplying productivity by a factor of ten.

4,It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.

5,It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.

Performance metrics

Serial No. BLA400-6-T Max capacity Horizontal handling 400kg
Overall Dimension 2160X960mmX910mm Power input AC220V
Control mode Manual push and pull rod control absorption Suction and discharge time All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure 85%vacuum degree(about0.85Kgf) Alarm pressure 60%vacuum degree

(about0.6Kgf)

Safety factor S>2.0;Horizontal absorption Dead weight of equipment 95kg(approximate)
Power failure

Maintaining pressure

After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically



Features

Vacuum board lifter with adjus7

Suction pad

•Easy replace     •Rotate pad head

•Suit various working conditions

•Protect workpiece surface

Direct-Factory-Sale-Vacuum-she8

Power control box

•Control the vacuum pump

•Displays the vacuum

•Pressure alarm

Direct-Factory-Sale-Vacuum-she10

Vacuum gauge

•Clear display

•Color indicator

•High-precision measurement

•Provide security

Vacuum board lifter with adjus9

Quality Raw Materials

•excellent workmanship

•long life

•High quality

Specification

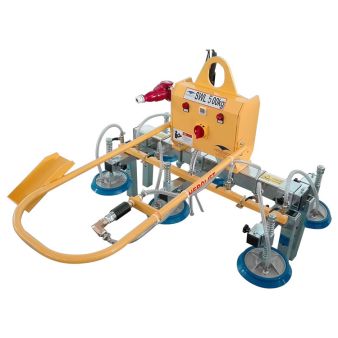

 Vacuum board lifter with adjus11 SWL/KG Type L×W×H mm  Own Weight kg
250 BLA250-4-T 2160×960×910 80
400 BLA400-6-T 2160×960×910 95
500 BLA500-6-T 2160×960×910 95
800 BLA800-8-T 3000×800×600 110
1500 BLA1500-12-T 3000×800×600 140
  Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
  For optionalDC OR AC Motor drive as your requirements

Detail display

Vacuum board lifter with adjus12
1 Supporting Feet 9 Vacuum Pump
2 Vacuum Hose 10 Beam
3 Power connecter 11 Main Beam
4 Power light 12 Remove Control Tray
5 Vacuum Gauge 13 Push-Pull Valve
6 Lifting ear 14 Shunt
7 Buzzer 15 Ball Valve
8 Power Switch 16 Suction Pads



Function

Safety tank integrated;

Adjustable suction cup;

Suitable for occasions with large size changes

Imported oil-free vacuum pump and valve

Efficient, safe, fast and labor-saving

Pressure detection ensure safety

The suction cup position be closed manually

Design conforms to CE standard

Application

This equipment is widely used for laser feeding.

Aluminum Boards

Steel Boards

Plastic Boards

Glass Boards

Stone Slabs

Laminated chipboards

Metal processing industry

Vacuum board lifter with adjus13
Vacuum board lifter with adjus14
Vacuum board lifter with adjus15
Vacuum board lifter with adjus16
