Portable Reel Lifter for lifting and rotating rolls

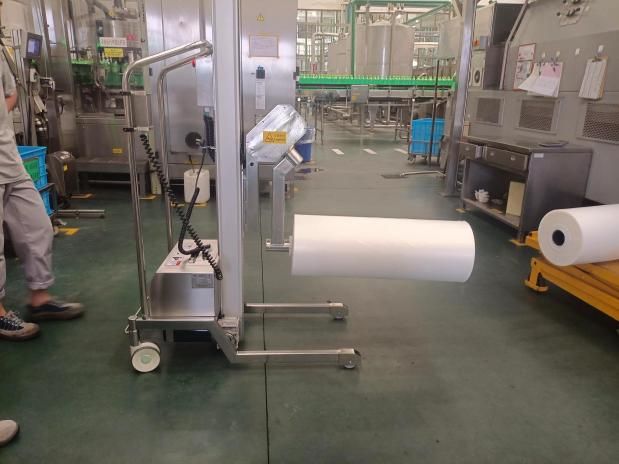

Handling heavy and bulky reels can be a challenging task, with risk of injury and potential damage to the material. However, with a portable reel lift, these problems go away. The lift is equipped with a motorized core gripping system that firmly grips the spool from the core, ensuring safe handling and protecting the integrity of the material.
One of the main features of this lift is the ability to spin the reels with the push of a button. This allows easy manipulation and positioning of the reel, saving valuable time and effort. Additionally, the electrical control system ensures the operator remains behind the lift at all times, further increasing safety and efficiency.
HEROLIFT understands the importance of providing customers with high quality products. With more than ten years of experience, the company has become a trusted partner in the industry. HEROLIFT represents leading manufacturers dedicated to providing customers with the very best in material handling equipment and solutions.
Portable Drum Lifts are just one of the many innovative products HEROLIFT offers. Their range of lifting solutions includes vacuum lifting equipment, track systems and handling equipment. These solutions are designed to increase productivity, efficiency and improve workplace safety.
In addition to its commitment to quality products, HEROLIFT takes customer satisfaction very seriously. Our team of experts works closely with clients to understand their specific needs and provide tailor-made solutions. HEROLIFT places a high value on customer service and technical support to ensure customers receive the best lifting solution for their unique needs.
Safety，Flexibilty，Quality，Reliablity，User friendly.
Characteristic ( wellable marking )
All models are modular built，which will enable us customize every unit in a simple and fast way。
1, Max.SWL500KG
Inner Gripper or outer Squeeze arm
Standard mast in Aluminum，SS304/316 available

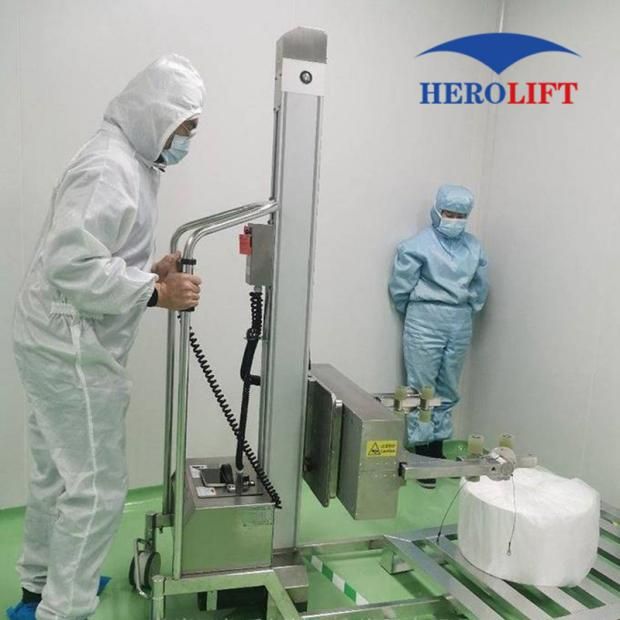

Clean room available
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010
Designed according to German UVV18 standard
2,Easy to customize
•Light Weight-Mobile for Easy Operation
•Easy Movement in all Directions with Full Load
•3-Position Foot-Operated Brake System with Parking Brake, Normal Swivel or Directional Steering of Casters.
•Precise Stop of Lift Function with Variable Speed Feature

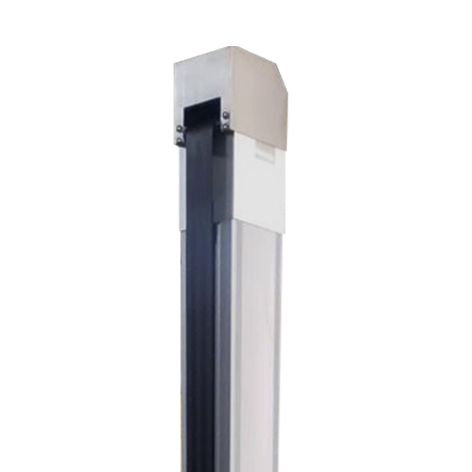

•Single Lift Mast Provides Clear View for safe Operation
•Enclosed Lift Screw-No Pinch Points
•Modular Design
•Adaptable to Multi-Shift Operation with Quick Exchange Kits
•Lifter Operation Permitted from all sides with Remote pendant
•Simple Exchange of End-Effector for Economic and Efficient Use of Lifter
•Quick Disconnect End-Effector

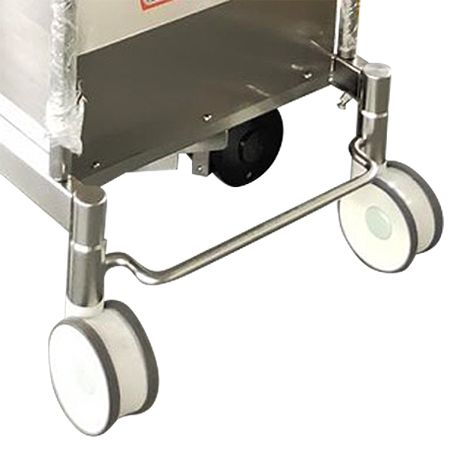

Central brake function
•Directional lock
•Neutral
•Total brake
•Standard on all units

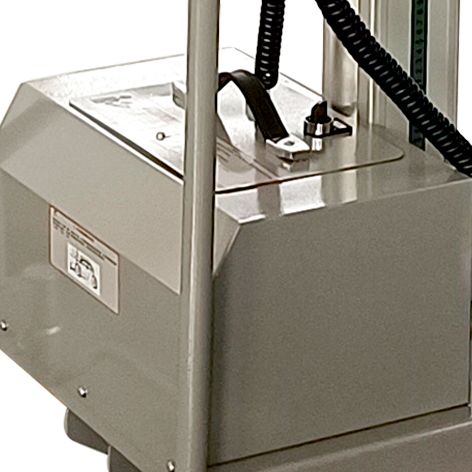

Replaceable battery pack
•Easy replacement
•Persistent work more than 8 hours

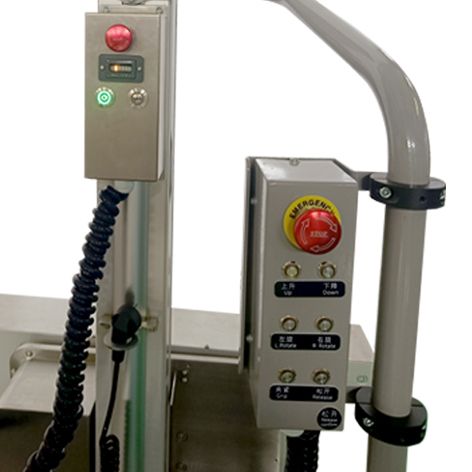

Clear operator panel
•Emergency switch
•Color indicator
•On/off switch
•Prepared for tool operations
•Detachable hand control
Safety belt Anti-falling
•Safety improvement
•Controllable descent
| Serial No. | CT40 | CT90 | CT150 | CT250 | CT500 | CT80CE | CT100SE |
| Capacity kg | 40 | 90 | 150 | 250 | 500 | 100 | 200 |
| Stroke mm | 1345 | 981/1531/2081 | 979/1520/2079 | 974/1521/2074 | 1513/2063 | 1672/2222 | 1646/2196 |
| Dead Weight | 41 | 46/50/53 | 69/73/78 | 77/81/86 | 107/113 | 115/120 | 152/158 |
| Total height | 1640 | 1440/1990/2540 | 1440/1990/2540 | 1440/1990/2540 | 1990/2540 | 1990/2540 | 1990/2540 |
| Battery |
2x12V/7AH |
||||||
| Transmission |
Timing Belt |
||||||
| Lifting speed |
Double speed |
||||||
| Control board |
YES |
||||||
| Lifts per Charge | 40Kg/m/100 times | 90Kg/m/100 times | 150Kg/m/100times | 250Kg/m/100times | 500Kg/m/100times | 100Kg/m/100times | 200Kg/m/100times |
| Remote control |
Optional |
||||||
| Front Wheel |
Versatile |
Fixed | |||||
| Adjustable |
480-580 |
Fixed | |||||
| Recharge time |
8 Hours |
||||||

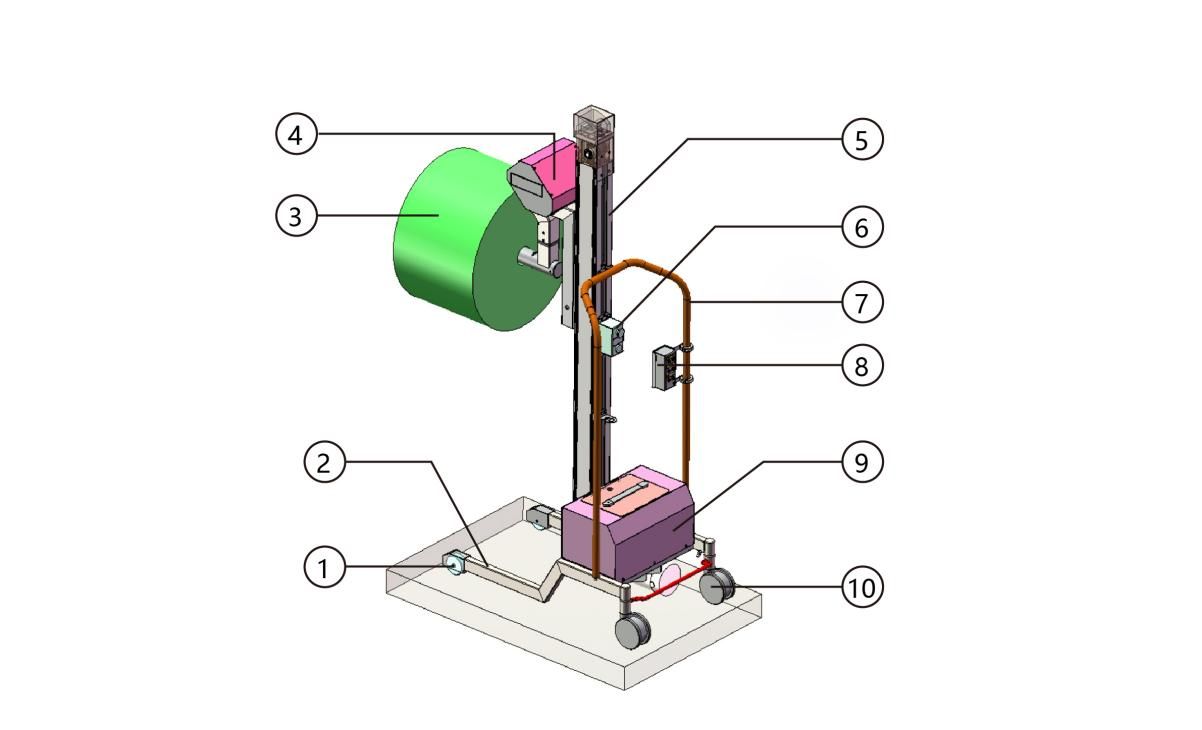

| 1，Front wheel | 6，Control Button |
| 2，Leg | 7，Handle |
| 3，Reel | 8，Control Button |
| 4，Coregripper | 9，Electrical box |
| 5，Lifting beam | 10，Rear Wheel |
1、User friendly
*Easy operation
*Lift by motor, move by hand push
*Durable PU wheels.
*Front wheels could be universal wheels or fixed wheels.
*Integrated bulit-in charger
*Lift height 1.3m/1.5m/1.7m for option
2、Good ergonomics means good economics
Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization — usually combined with higher productivity.
3、Unique personal safety
Herolift product designed with several built-in safety features. load is not dropped if the equipment stopped running. Instead, the load will be lowered to the ground in a controlled manner.
4、Productivity
Herolift not only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.
5、Application specific solutions
Non-standard Special Coregripper.
6、Battery can be changed quickly，becure the equipment sustained operation
For sacks, for cardboard boxes,for wooden sheets, for sheet metal,for drums,
for electrical appliances, for cans, for baled waste, glass plate, baggage,
for plastic sheets, for wood slabs, for coils, for doors, battery, for stone.
