Drum Lifting and Tipping Trolley Max handling 200KG

Short Description:

HEROLIFT has designed CT-SE series electric trolley combine incredible strength with simple drum handling by one person.Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage.

It can help you lift, move and pour plastic, fiber and steel drums, and also can provide controlled dispensing of your drums. With the feature of simple design and easy operation, this Drum convenient trolley is what you need to dump steel & plastic drums that weigh up to 200kg.

HEROLIFT convenient trolley is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.We provide wide range of drum lifters, drum trolleys and more,which suitable for the food industry ,the printing industry, roll film industry and round material handling, lifting, loading, unloading, flipping.

HEROLIFT values:Safety，Flexibilty，Quality，Reliablity，User friendly.

Send email to us

Product Detail

Product Tags

Characteristic

All models are modular built，which will enable us customize every unit in a simple and fast way。

1, Capacity:50-200KG

Move, lift, rotate, empty and transport drums easily and safely.

Standard mast in Aluminum，SS304/316 available

Clean room available

CE certification EN13155:2003

China Explosion-proof Standard GB3836-2010

Designed according to German UVV18 standard

2,Easy to customize

•Light Weight-Mobile for Easy Operation

•Easy Movement in all Directions with Full Load

•3-Position Foot-Operated Brake System with Parking Brake, Normal Swivel or Directional Steering of Casters.

•Precise Stop of Lift Function with Variable Speed Feature

•Single Lift Mast Provides Clear View for safe Operation

•Enclosed Lift Screw-No Pinch Points

•Modular Design

•Adaptable to Multi-Shift Operation with Quick Exchange Kits

•Lifter Operation Permitted from all sides with Remote pendant

•Simple Exchange of End-Effector for Economic and Efficient Use of Lifter

•Quick Disconnect End-Effector

Features

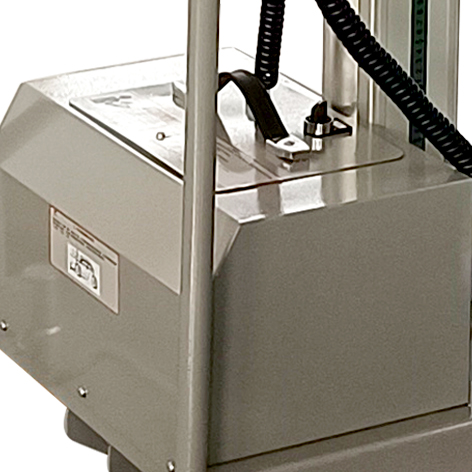

Central brake function•Directional lock •Neutral •Total brake •Standard on all units	Replaceable battery pack•Easy replacement •Persistent work more than 8 hours

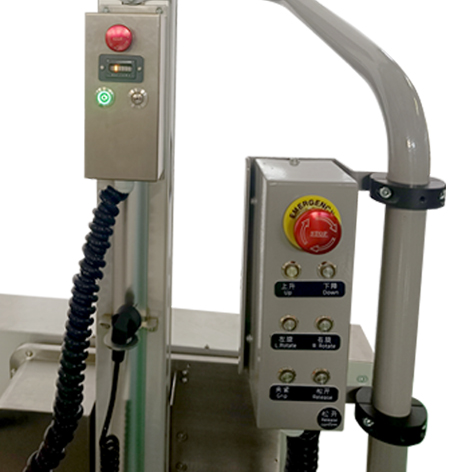

Clear operator panel•Emergency switch •Color indicator •On/off switch •Prepared for tool operations •Detachable hand control	Safety belt Anti-falling•Safety improvement •Controllable descent

Specification

Serial No.	CT40	CT90	CT150	CT250	CT500	CT100SE	CT200SE
Capacity kg	40	90	150	250	500	100	200
Stroke mm	1345	981/1531/2081	979/1520/2079	974/1521/2074	1513/2063	1646/2196	1646/2196
Dead Weight	41	46/50/53	69/73/78	77/81/86	107/113	152/158	152/158
Total height	1640	1440/1990/2540	1440/1990/2540	1440/1990/2540	1990/2540	1990/2540	1990/2540
Battery	2x12V/7AH
Transmission	Timing Belt
Lifting speed	Double speed
Control board	YES
Lifts per Charge	40Kg/m/100 times	90Kg/m/100 times	150Kg/m/100times	250Kg/m/100times	500Kg/m/100times	100Kg/m/100times	200Kg/m/100times
Remote control	Optional
Front Wheel	Versatile		Fixed
Adjustable	480-580			Fixed
Recharge time	8 Hours

Detail display

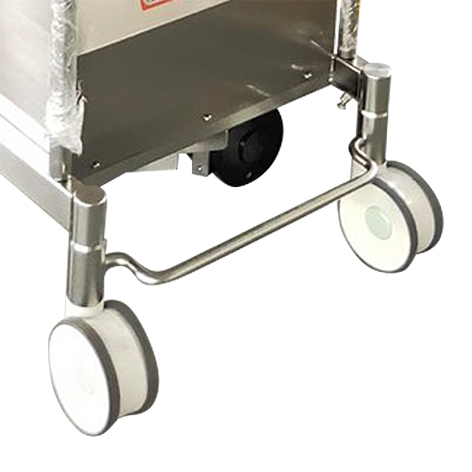

1，Front wheels	8，360 degrees rotation mechanism
2，Arm	9，Handle
3，Roll	10，Battery pack
4，Holding clam	11，Stainless steel cover
5，Prevent falling safety belt	12，Rear Wheel

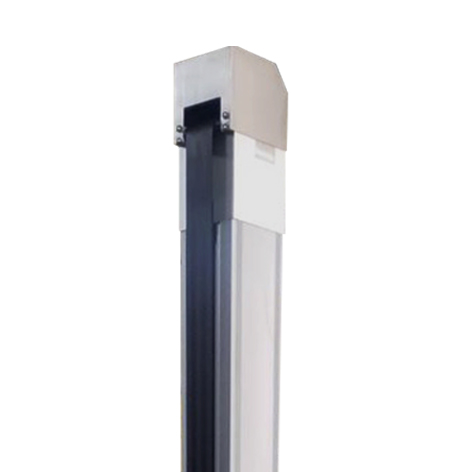

6，Lifting beam	13，Motor
7，Operate control panel	14，Stainless steel leg

Function

* User friendly

*Easy operation

*Lift by motor, move by hand push

*Durable PU wheels.

*Front wheels could be universal wheels or fixed wheels.

*Integrated bulit-in charger

*Lift height 1.3m/1.5m/1.7m for option

* Good ergonomics means good economics

Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization — usually combined with higher productivity.

* Unique personal safety

Herolift product designed with several built-in safety features. load is not dropped if the vacuum suddenly stopped running. Instead, the load will be lowered to the ground in a controlled manner.

* Productivity

Herolift not only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.

Application

Service cooperation

Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and established a reliable brand for more than 17 years.
