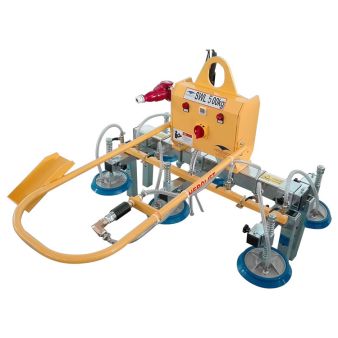

Direct Factory Sale Vacuum sheet metal lifter for Laser machine feeding vacuum lifter

Short Description:

Our innovative vacuum lifter for laser feeding! This cutting-edge equipment is specifically designed to provide superior handling of sheets with dense, smooth or structured surfaces to meet the demands of the laser cutting process.

The lift is simple to operate, ensuring ease of use and efficiency in your daily operations. Plus, our primary focus on safety ensures your employees can perform their missions with peace of mind.

The adaptability of our equipment allows it to be modified quickly and easily to accommodate different workpiece sizes. This feature, combined with its high load capacity, makes our vacuum lifters the ideal partner for simplifying and rationalizing manufacturing processes. By optimizing your material handling operations, you can save valuable time and resources.

Send email to us

Product Detail

Product Tags

The device of our equipment,can choose DC or AC 380V.If you choose to charge the battery,you can use it for about 70 hours per charge.The battery life is more than 4 years.The normal power supply voltage of the equipment is 110V-220V.If you choose 380AC,because the voltage is different in each country or region,you need to know your local voltage when you purchase,we will provide the corresponding transformer according to the voltage in your country region.

Almost everything can be lifted

With custom-made tools we can solve your specific needs. Please contact us for more information

Characteristic

1, Max.SWL1500KG

Low pressure warning

Adjustable suction cup

Remote control

CE certification EN13155:2003

China Explosion-proof Standard GB3836-2010

Designed according to German UVV18 standard

2, Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.

3,A single person can thus quickly move up to 1 tonnes, multiplying productivity by a factor of ten.

4,It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.

5,It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.

performance index

Serial No.	BLA400-6-T	Max capacity	Horizontal handling 400kg
Overall Dimension	2160X960mmX910mm	Power input	AC220V
Control mode	Manual push and pull rod control absorption	Suction and discharge time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree（about0.85Kgf）	Alarm pressure	60%vacuum degree （about0.6Kgf）
Safety factor	S>2.0;Horizontal absorption	Dead weight of equipment	95kg（approximate）
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad

•Easy replace •Rotate pad head

•Suit various working conditions

•Protect workpiece surface

Power control box

•Control the vacuum pump

•Displays the vacuum

•Pressure alarm

Vacuum gauge

•Clear display

•Color indicator

•High-precision measurement

•Provide security

Quality Raw Materials

•excellent workmanship

•long life

•High quality

Specification

SWL/KG	Type	L×W×H mm	Own Weight kg
250	BLA250-4-T	2160×960×910	80
400	BLA400-6-T	2160×960×910	95
500	BLA500-6-T	2160×960×910	95
800	BLA800-8-T	3000×800×600	110
1500	BLA1500-12-T	3000×800×600	140
Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
For optional DC OR AC Motor drive as your requirements

Detail display

1	Supporting Feet	9	Vacuum Pump
2	Vacuum Hose	10	Beam
3	Power connecter	11	Main Beam
4	Power light	12	Remove Control Tray
5	Vacuum Gauge	13	Push-Pull Valve
6	Lifting ear	14	Shunt
7	Buzzer	15	Ball Valve
8	Power Switch	16	Suction Pads

Function

Safety tank integrated；

Adjustable suction cup；

Suitable for occasions with large size changes

Imported oil-free vacuum pump and valve

Efficient, safe, fast and labor-saving

Pressure detection ensure safety

The suction cup position be closed manually

Design conforms to CE standard

Application

This equipment is widely used for laser feeding.

Aluminum Boards

Steel Boards

Plastic Boards

Glass Boards

Stone Slabs

Laminated chipboards

Metal processing industry

Service cooperation

Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and established a reliable brand for more than 17 years.
