Convenient trolley ideal for roll handling ,drum handling with different grippers

Short Description:

For some case, Mobile lifter is required to pick ordered package. MP is born for this application.

Intergrated in stacker, it can easily move across whole workshop, to anywhere you need, even outside for truck loading and unloading. The maximum loading capacity was 80kg. The power is DC from stacker battery.

Send email to us

Product Detail

Product Tags

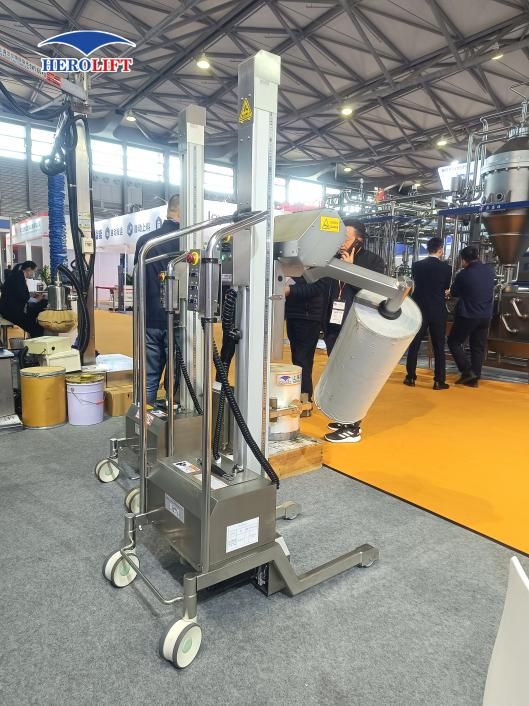

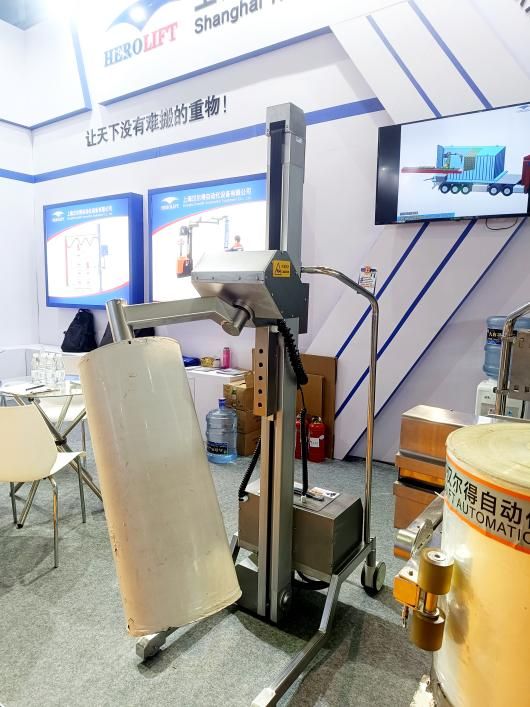

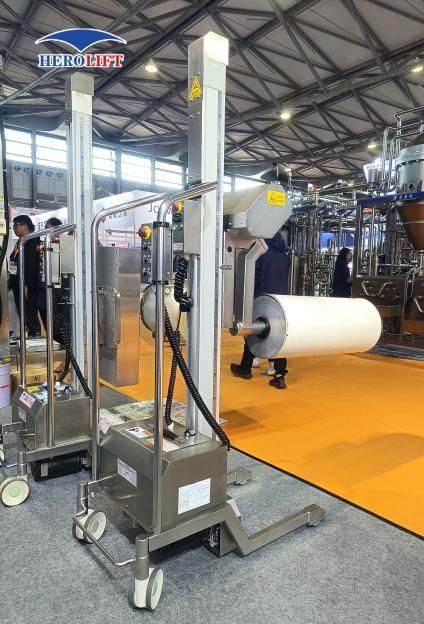

The convenience trolley can efficiently grips reels from the core, safety lifting them and rotating them with a simple push of a button. The electrical control the operator can always stay behind.

Convenient trolleys are engineered for maximum safety and efficiency. Its electrical control mechanism enables the operator to remain behind the lift at all times, eliminating the need to physically manipulate heavy reels. This design feature greatly reduces the risk of accidents during lifting and handling.

Plus, the handy trolley grabs the reel from the core to ensure a secure hold, preventing any accidental slippage. The motorized core sandwicher combined with the trolley's advanced lifting technology ensures that the roll remains in place throughout the handling process. This eliminates the possibility of damage to the delicate reel material and increases safety and efficiency.

HEROLIFT's commitment to quality is reflected in the design and function of the convenience cart. As an industry-leading manufacturer, HEROLIFT has a solid reputation for delivering innovative solutions that meet customers' specific needs.

The Convenience Cart is just one of many HEROLIFT products. The company prides itself on representing industry-leading manufacturers, ensuring customers have access to cutting-edge technology and the highest quality products.

Convenience trolleys are engineered for maximum safety and efficiency. Its electrical control mechanism enables the operator to remain behind the lift at all times, eliminating the need to physically manipulate heavy reels. This design feature greatly reduces the risk of accidents during lifting and handling.

Protema values

Safety，Flexibilty，Quality，Reliablity，User friendly.

Characteristic ( wellable marking )

All models are modular built，which will enable us customize every unit in a simple and fast way。

1, Max.SWL500KG

Inner Gripper or outer Squeeze arm

Standard mast in Aluminum，SS304/316 available

Clean room available

CE certification EN13155:2003

China Explosion-proof Standard GB3836-2010

Designed according to German UVV18 standard

2,Easy to customize

•Light Weight-Mobile for Easy Operation

•Easy Movement in all Directions with Full Load

•3-Position Foot-Operated Brake System with Parking Brake, Normal Swivel or Directional Steering of Casters.

•Precise Stop of Lift Function with Variable Speed Feature

•Single Lift Mast Provides Clear View for safe Operation

•Enclosed Lift Screw-No Pinch Points

•Modular Design

•Adaptable to Multi-Shift Operation with Quick Exchange Kits

•Lifter Operation Permitted from all sides with Remote pendant

•Simple Exchange of End-Effector for Economic and Efficient Use of Lifter

•Quick Disconnect End-Effector

Features

Central brake function

•Directional lock
•Neutral
•Total brake
•Standard on all units

Replaceable battery pack

•Easy replacement

•Persistent work more than 8 hours

Clear operator panel

•Emergency switch

•Color indicator

•On/off switch

•Prepared for tool operations

•Detachable hand control

Safety belt Anti-falling

•Safety improvement

•Controllable descent

Specification

Serial No.	CT40	CT90	CT150	CT250	CT500	CT80CE	CT100SE
Capacity kg	40	90	150	250	500	100	200
Stroke mm	1345	981/1531/2081	979/1520/2079	974/1521/2074	1513/2063	1672/2222	1646/2196
Dead Weight	41	46/50/53	69/73/78	77/81/86	107/113	115/120	152/158
Total height	1640	1440/1990/2540	1440/1990/2540	1440/1990/2540	1990/2540	1990/2540	1990/2540
Battery	2x12V/7AH
Transmission	Timing Belt
Lifting speed	Double speed
Control board	YES
Lifts per Charge	40Kg/m/100 times	90Kg/m/100 times	150Kg/m/100times	250Kg/m/100times	500Kg/m/100times	100Kg/m/100times	200Kg/m/100times
Remote control	Optional
Front Wheel	Versatile		Fixed
Adjustable	480-580			Fixed
Recharge time	8 Hours

Detail display

1，Front wheel	6，Control Button
2，Leg	7，Handle
3，Reel	8，Control Button
4，Coregripper	9，Electrical box
5，Lifting beam	10，Rear Wheel

Function

1、User friendly

*Easy operation

*Lift by motor, move by hand push

*Durable PU wheels.

*Front wheels could be universal wheels or fixed wheels.

*Integrated bulit-in charger

*Lift height 1.3m/1.5m/1.7m for option

2、Good ergonomics means good economics

Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization — usually combined with higher productivity.

3、Unique personal safety

Herolift product designed with several built-in safety features. load is not dropped if the equipment stopped running. Instead, the load will be lowered to the ground in a controlled manner.

4、Productivity

Herolift not only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.

5、Application specific solutions

Non-standard Special Coregripper.

6、Battery can be changed quickly，becure the equipment sustained operation

Application

For sacks, for cardboard boxes,for wooden sheets, for sheet metal,for drums,

for electrical appliances, for cans, for baled waste, glass plate, baggage,

for plastic sheets, for wood slabs, for coils, for doors, battery, for stone.

Service cooperation

Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and established a reliable brand for more than 17 years.
